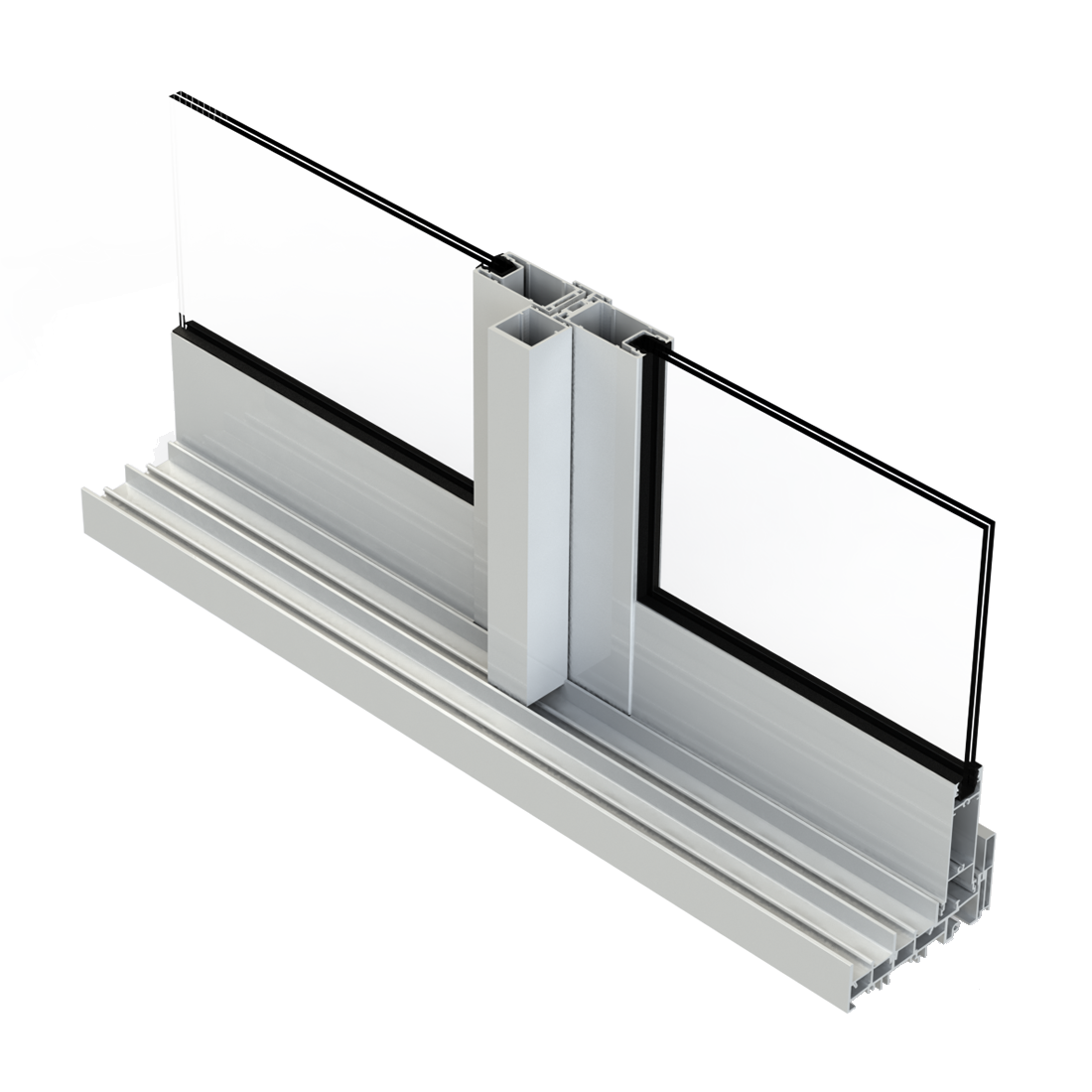

The ES-SGD2020 is an impact-rated sliding glass door with minimal sightlines. This narrow door features less aluminum and more glass than others allowing a clearer view.
Designed for the USA market
FEATURES
Hurricane Resistant
Hurricane ResistantConfigurations
System Description
- Large missile impact rated
- Maximum panel size: 72” width x 120” height , 60” width x 144” height
- Frame depth: 4 3/8” (2 track), 6 7/16” (3 track), 8 1/2” (4 track), 10 9/16″ (5 track)
- Sill height: 1 7/8”

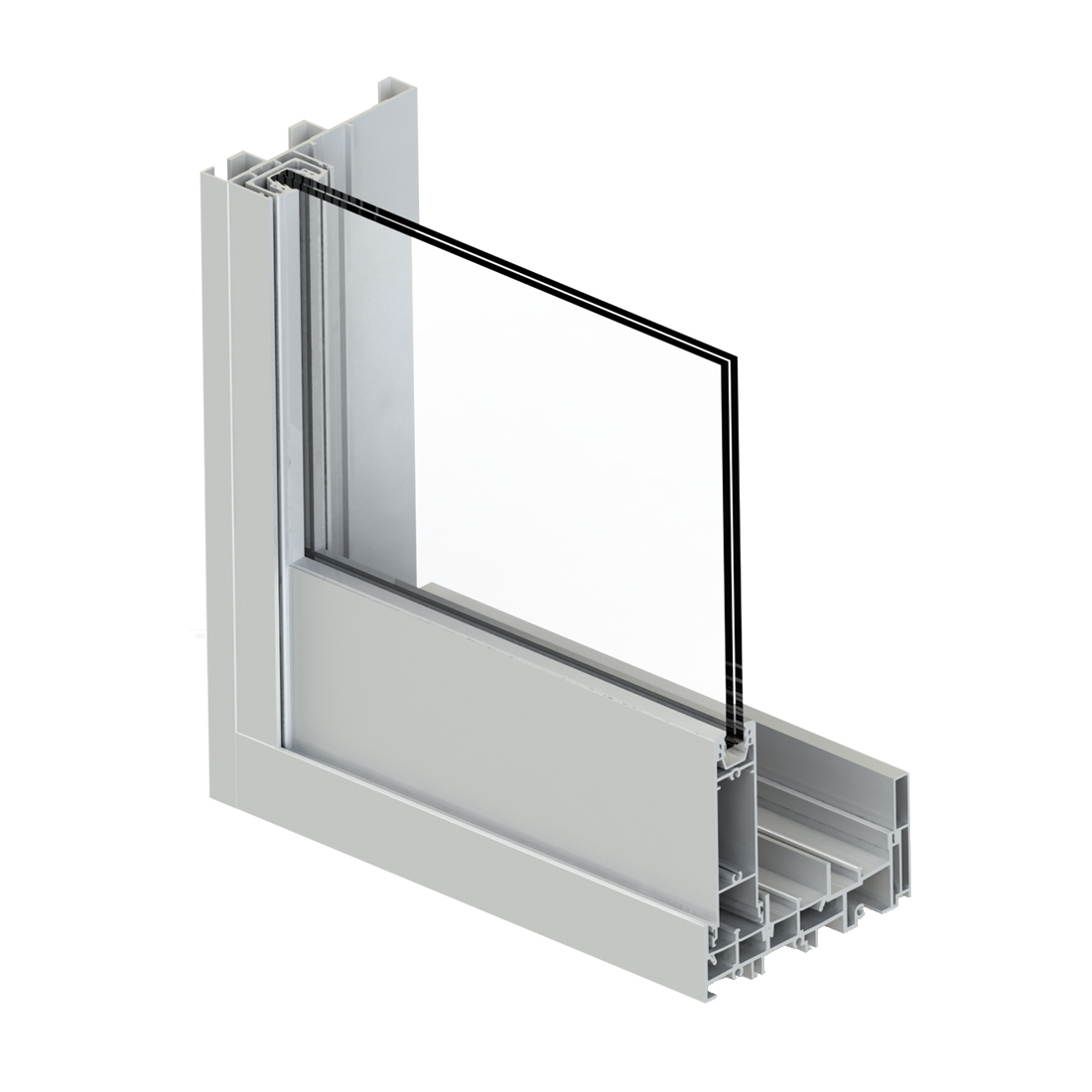

- 90 degree and 135 degree corners
- 2” interlocks
- Tested water infiltration: 12 psf.
- Tested design load: +65/-65 psf.
- U-value: 0.57 on insulating laminated SB 70
- SHGC: 0.23 on insulating laminated SB 70
Features

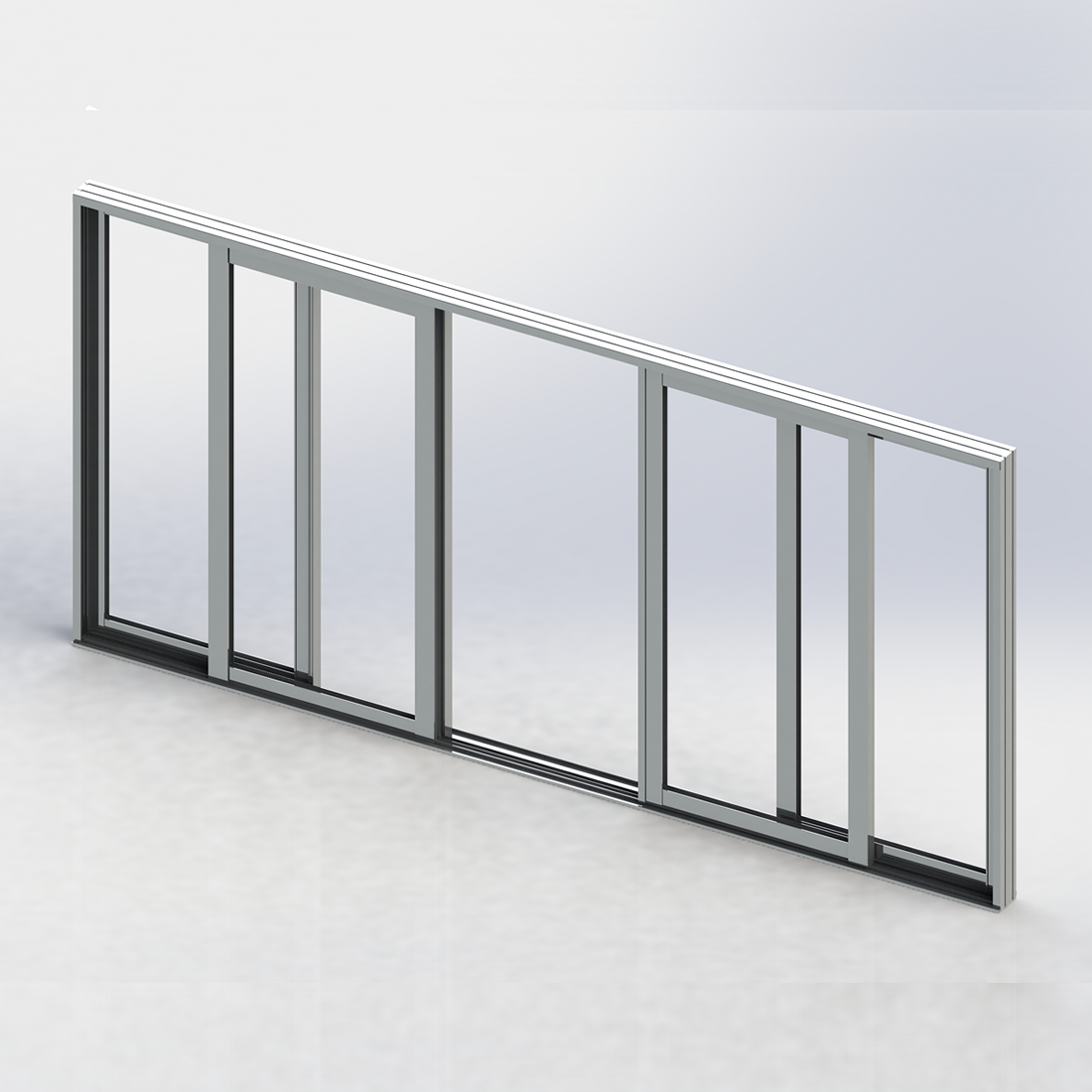

- Multiple panel configurations
- Removable sill riser painted to match the door
- Needle bearing acetal roller
- Standard contemporary handle & thumb turn
- 2 point locking hardware
- Multiple track options
- Pocket configuration
