Multimax ES-MX4000 Sliding Doors

SKU: ES-MX4000

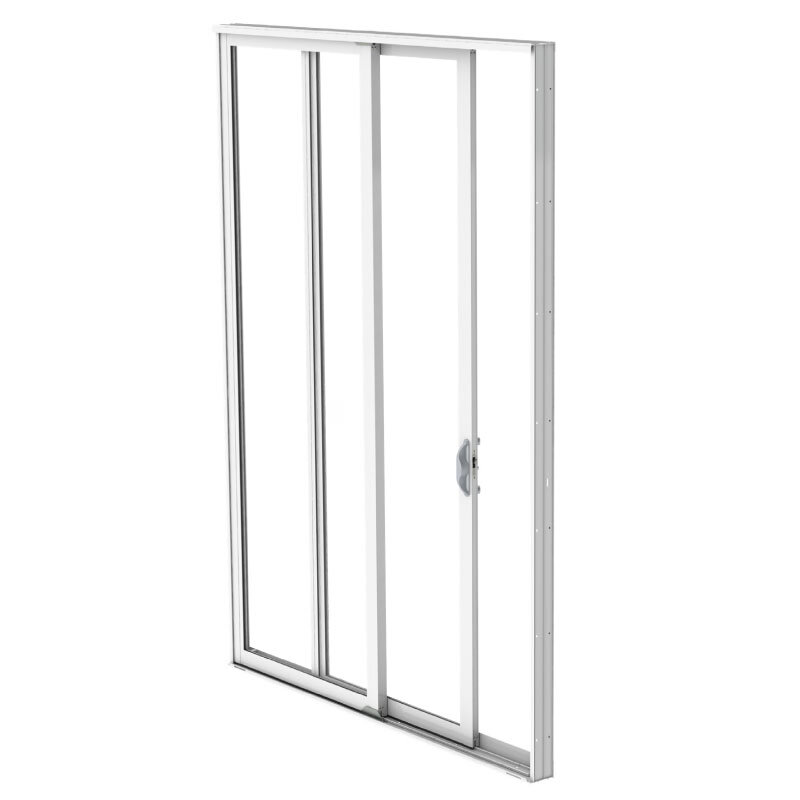

ES-MX4000 is an impact rated sliding glass door system. Designed with the highest technical standards in safety and durability. The system is very versatile and can be implemented in interior or exteriors for a wide range of residential or commercial projects.

Designed for the USA market

Configurations

blank

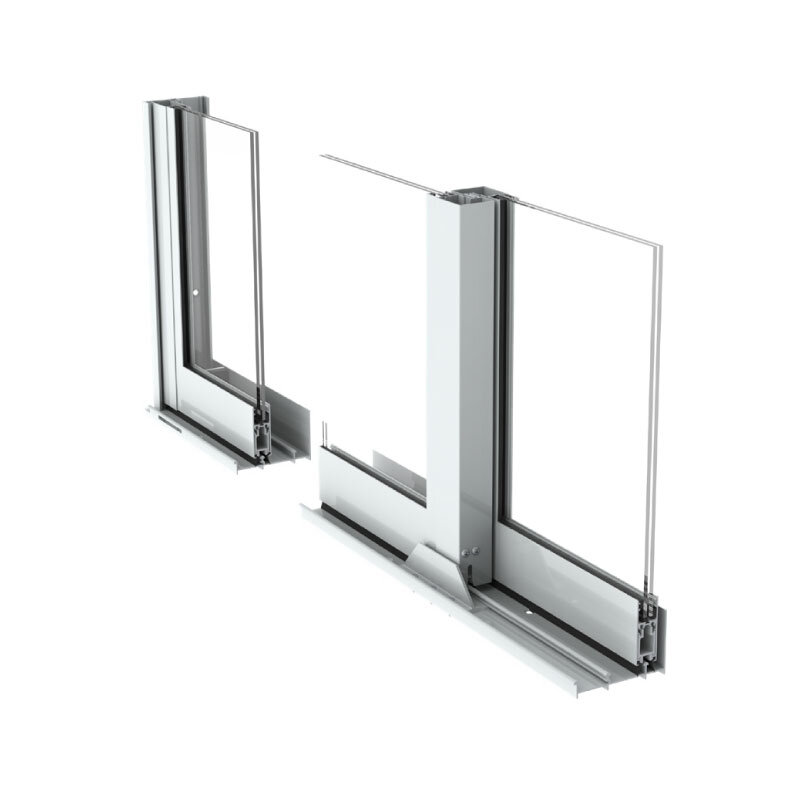

System Description

  • Maximum panel size: 48” width x 108” height , 48” width x 111” height (2 panel with reinforcements)
  • Frame depth: 5 3/8”
  • Sill height: 2 5/8”
  • 2 track, and up to 4 panel configuration with screens
  • Configurations: OX, XO, OXO, OXXO
  • Tested water infiltration: 12 psf.
  • Tested design load: +70/-80 psf , +80/-103 psf. (OX and XO only)
  • Laminated glass: 3/16" HS + 0.09 PVB + 3/16" HS
  • U-value: 1.02 on clear laminated SB 70
  • SHGC: 0.30 on clear laminated SB 70

Features

  • Low-E Solarban 70 available
  • Screen option available
  • PVB laminated glass with coating options available
  • White and bronze aluminum finishes
  • Reinforcement available
