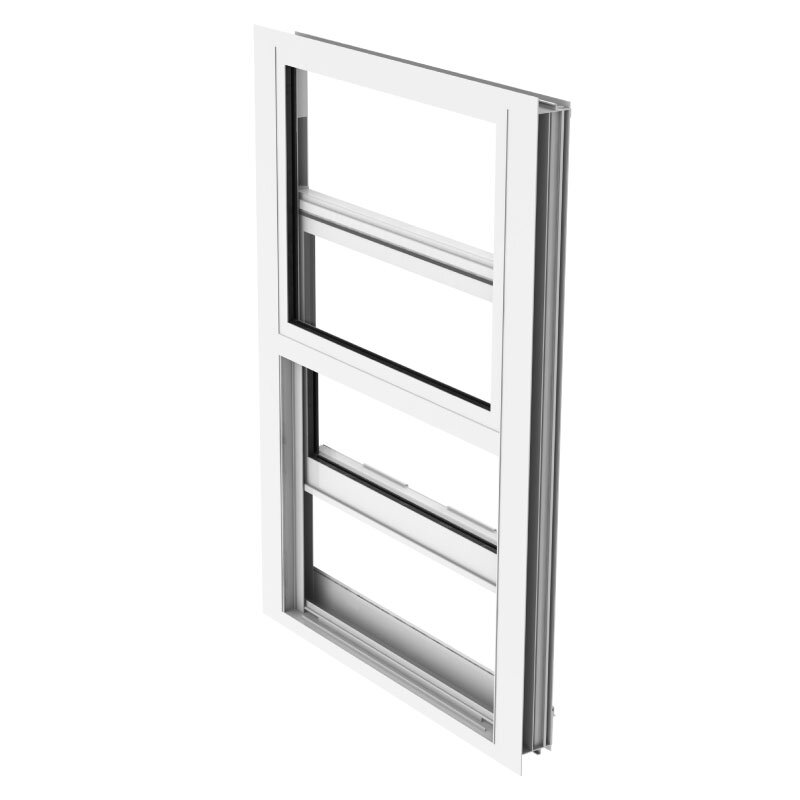

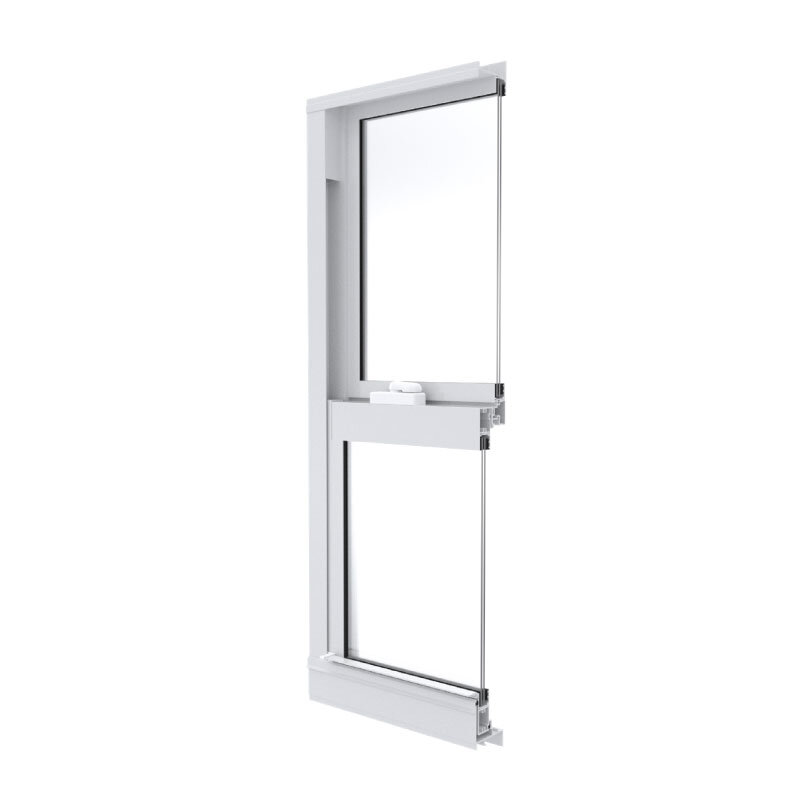

Multimax ES-MX1000 Hung Windows

The ES-MX1000 is a hung window that can be adapted to any architectural design, the system follows strict construction specifications and architectural standards of safety and durability. This window system can be implemented in residential and commercial constructions projects.

Designed for the USA market

FEATURES
  • blankHurricane Resistant

Configurations

blank
blank

System Description

  • Maximum width (Equal): 53 1/8” width x 63” height
  • Maximum height (Equal): 74 1/4” height x 42” width
  • Maximum width (Unequal): 53 1/8” width x 50 5/8” height
  • Maximum height (Unequal): 74 1/4” height x 26 1/2” width
  • Frame depth: 2 3/8”
  • Flange frame available
  • Designed for 5/16” annealed and heat strengthened glass options
  • LMI and SMI
  • Configuration: OX
  • Tested water infiltration: 12 psf.
  • Tested design load: +80/-90 psf. (LMI) , +80/-120 psf. (SMI)
  • Laminated glass: 1/8” ANN + 0.09 PVB + 1/8” ANN , 1/8” HS + 0.09 PVB + 1/8” HS
  • U-value: 1.04 on clear laminated SB 70
  • SHGC: 0.29 on clear laminated SB 70

Features

  • Low-E Solarban 70 available
  • Screen option available
  • Block and tackle and ultra-lift balance options
  • White and bronze aluminum finishes
  • Sweep lock and vent latch handles available
  • Heavy duty meeting rail available
