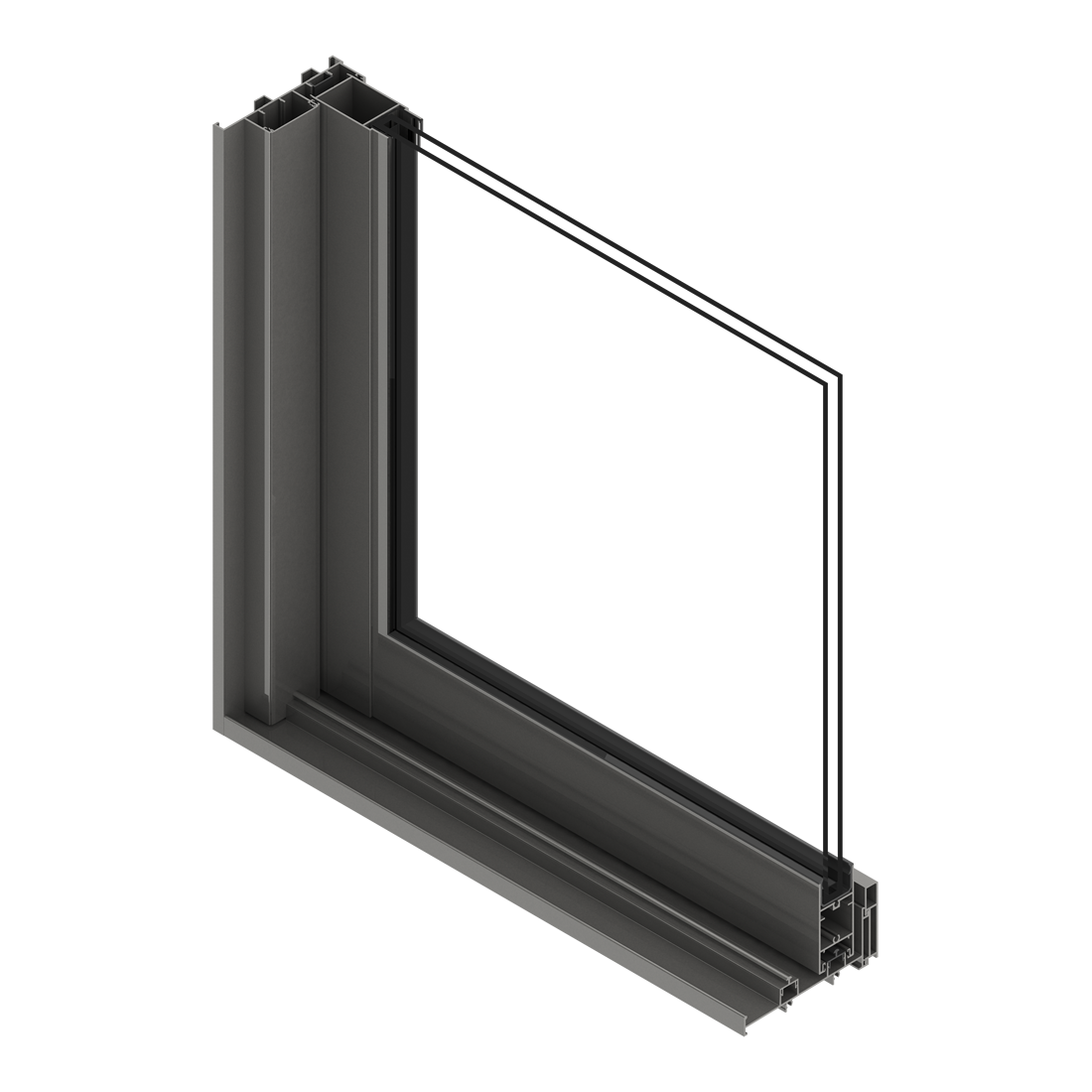

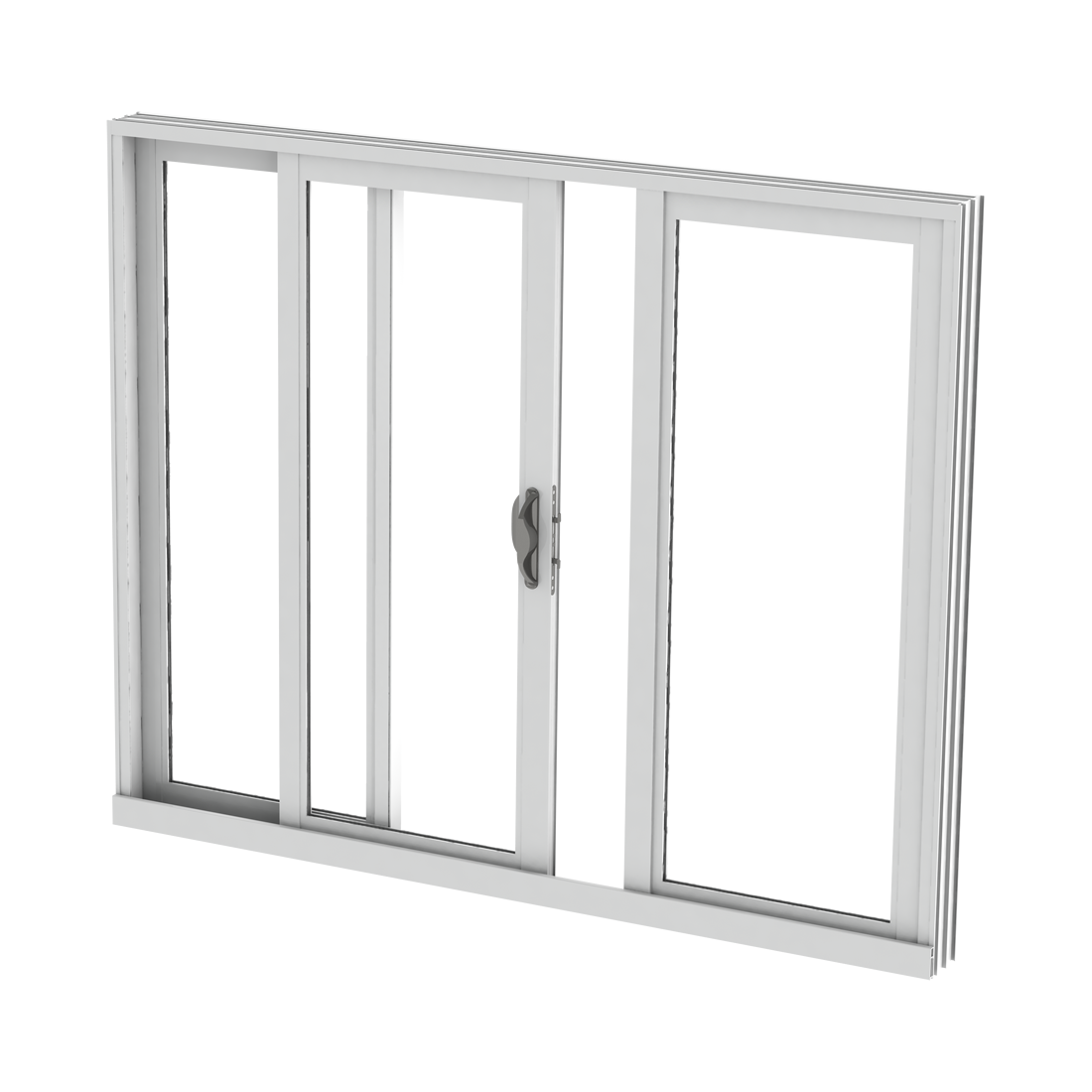

The ES-EL400 is a sliding door with a 4 9/16” frame profile. This product meets the most stringent specifications and, with its attractive design and three-track frame, is ideal for a wide range of applications.
Designed for the USA market
FEATURES
Hurricane Resistant
Hurricane ResistantConfigurations
System Description
- Large missile impact rated
- Frame depth: 4 13/16″
- Configurations: XO, OX, XX, OXO, XXX, OXXO, OXXX, XXXX, XOXXOX
- Designed for laminated, insulating and insulating laminated glass
- Tested water infiltration: 12 psf
- Tested design load: +80/-80 psf
- Maximum panel size: 48″ width x 120″ height , 60″ width x 96″ height
- U-value: 0.57 – IGU (3/16″ SB70 Clear + AS + 3/16″ Clear + 0.090 PVB + 3/16″ Clear) , 1.04 – LG (3/16″ Clear + 0.090 PVB + 3/16″ Clear)
- Insulating laminated glass: 3/16″ + 3/8″ AS + 3/16″ + 0.090 Interlayer + 3/16″
- Laminated glass: 3/16″ + 0.090 Interlayer + 3/16″
- SHGC: 0.23 on clear insulating laminated SB 70
- Minimum width for accessibility is 75 5/8″ on OX/XO configuration and 81 7/8″ on XX configuration
Features
- Adjustable tandem polyamide needle bearing rollers
- Up to 4-track frame option
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
- Pocket configuration available
