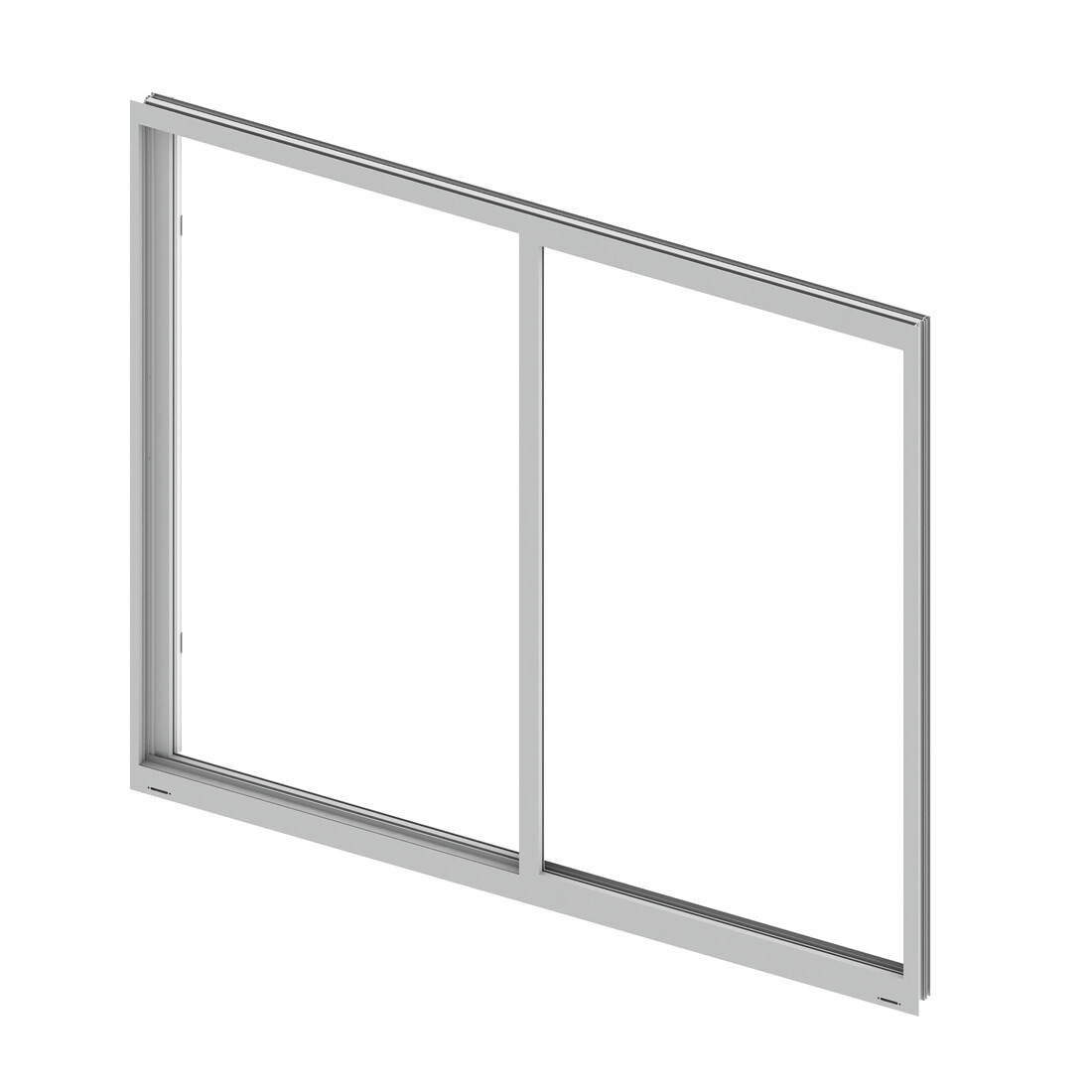

Elite ® ES-EL200 Horizontal Roller / Sliding Window

SKU: ES-EL200

The ES-EL200 is a horizontal roller sliding window. This product ensures an easy and smooth opening allowing maximum ventilation. ES-EL200 can be used on a wide variety of applications.

Designed for the USA market

FEATURES
  • Hurricane Resistant

Configurations

System Description

  • Large missile impact rated
  • Frame depth: 2 5/16"
  • Configurations: XO, OX or XOX
  • Designed for laminated, insulating and insulating laminated glass
  • Tested water infiltration: 10 psf
  • Tested design load: +80/-90 psf
  • Maximum size: 62" width x 75 15/16" height (2 panel) , 62" width x 110" height (3 panel)
  • U-value: 0.62 - IGU (1/8" SB70 + AS + 1/8" Clear + 0.090 PVB + 1/8" Clear) , 1.0 - LG (1/8" Clear + 0.090 PVB + 1/8" Clear)
  • Insulating laminated glass: 1/8"+ 3/8" AS + 1/8" + 0.090 Interlayer + 1/8" , 1/8" + 5/16" AS + 1/8" + 0.090 Interlayer + 1/4"
  • Laminated glass: 1/8" + 0.090 Interlayer + 1/8" , 1/8" + 0.090 Interlayer + 1/4"
  • Egress Size: 72 3/8" x 30 1/8" and 52" x 42 1/8"
  • SHGC: 0.24 on clear insulating laminated SB 70

Features

  • Flange frame for masonry, fin frame for wood construction or flush frame for concrete opening
  • Polyamide rollers with needle bearings
  • Spring latch at jamb or sweep lock options
  • Flange or fin frame for masonry and wood construction, flush frame for concrete openings
  • Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
