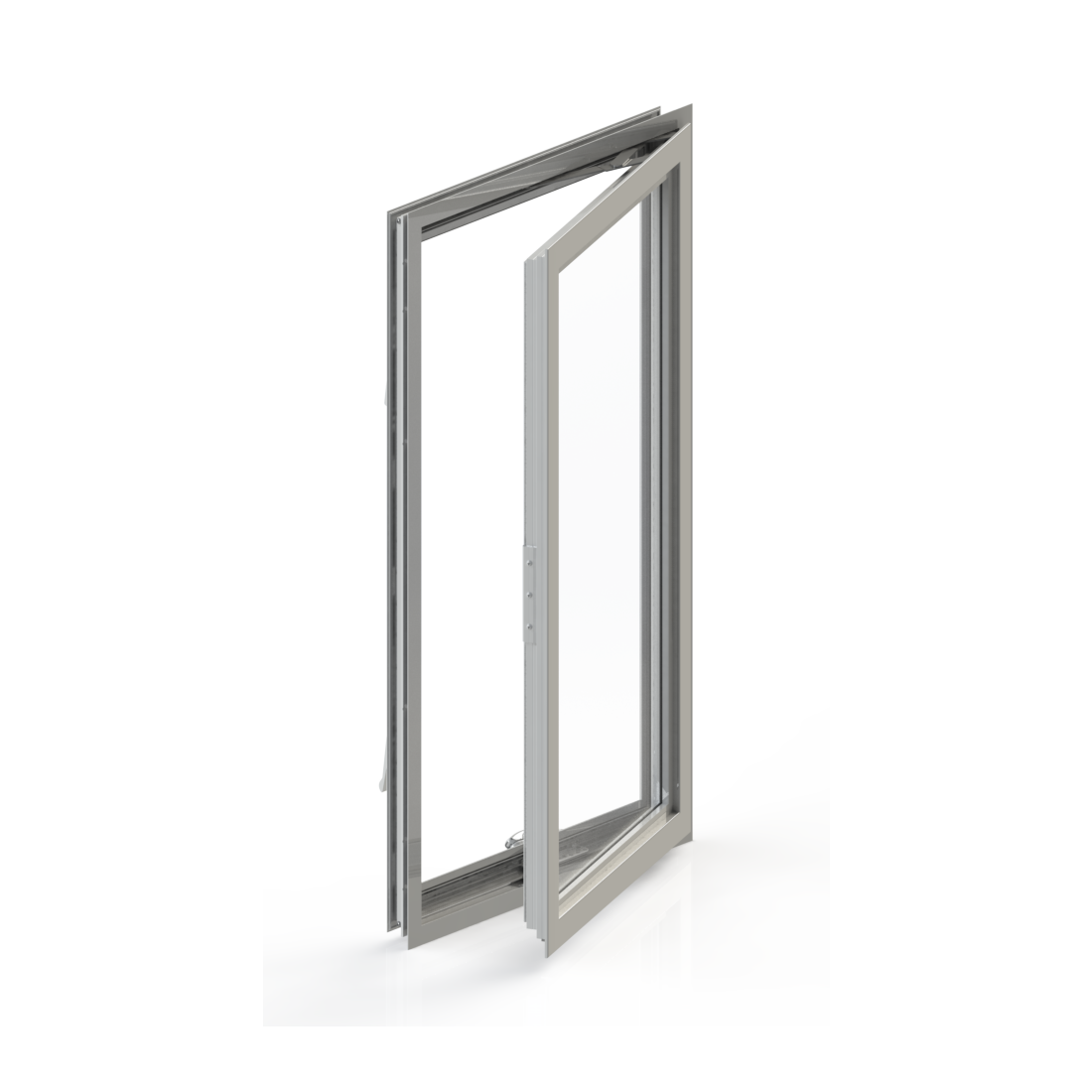

The ES-5000 is a 2 1/8” depth impact rated casement window featuring a rotating handle for an effortless operation. It is available in multiple glazing options providing flexibility in design.
Designed for the American and Latin American markets
FEATURES
Hurricane Resistant
Hurricane ResistantConfigurations
System Description
- Large missile impact
- Frame depth: 2 1/8″
- Configurations: X, XX
- Designed for laminated and insulating glass
- Tested water infiltration: 13.5 psf
- Tested design load: +90/-90 psf
- Maximum size: 37″ width x 74 1/4″ height X , 74″ width x 74 1/4″ height XX
- U-value: 0.70 – IGU (5/32″ SB70 Clear + AS + 1/8″ Clear + 0.090 PVB + 5/32″ Clear)
- Insulating laminated glass: 5/32″ + 1/4″ AS + 1/8″ + 0.090 Interlayer + 5/32″
- Laminated glass: 1/8″ + 0.090 Interlayer + 1/8″ , 5/32″ + 0.090 Interlayer + 1/8″
- SHGC: 0.22 on clear insulating laminated SB 70
Features
- Single arm operator and multi-point lock
- Heavy duty stainless steel four bar hinge
- Flange frame for masonry and wood construction or flush frame for concrete openings
- Screens available in aluminum frame and fiberglass mesh
- Surface applied OG or flat muntins
- Saflex PVB, Kuraray PVB, Vanceva Storm and SentryGlas Plus interlayer options
